Replace a worn CV joint
Indicative repair budget for an identified joint fault. The quote specifies the joint, boot, grease, fitting and required hardware. Inner and outer designs can differ.
Volkswagen Drive Shaft Repair in Dubai
Clicking on turns, grease around a wheel or shudder under acceleration? Our independent VW workshop in Al Quoz 4 checks the shaft, CV joints and surrounding components, then explains whether a boot, joint or complete assembly needs replacing.
CV-joint repair guide AED 500–1,200Complete wheel-side shaft guide AED 1,500–3,500 per sideIndicative budgets. Compact-model options can cost less; genuine, larger and 4MOTION assemblies can cost more. A written fitted quote comes before work.
- Repair choices explained
- Genuine or OEM parts
- Written approval first
What might the repair cost?
Compare like-for-like work: a joint repair on one wheel-side shaft is a different job from replacing the long prop shaft beneath a 4MOTION vehicle.
AED 500–1,200
Replace a complete wheel-side shaft
General per-side budget for an axle assembly and fitting. Smaller-model alternatives may fall below this guide; new genuine and higher-specification assemblies may exceed it.
Replace a complete prop shaft
Touareg-type planning guide for a compatible longitudinal assembly and fitting. This is not a universal price for every SUV, 4MOTION system or generation.
Diagnosis, recovery, alignment and additional damage are identified separately when applicable. These are planning estimates, not fixed all-inclusive tariffs.
Call for a fitted quoteChoose the repair the condition supports
Replacing everything is not always necessary. We assess the boot, both joints and the shaft before comparing the cost of repairing the original with fitting a complete replacement.

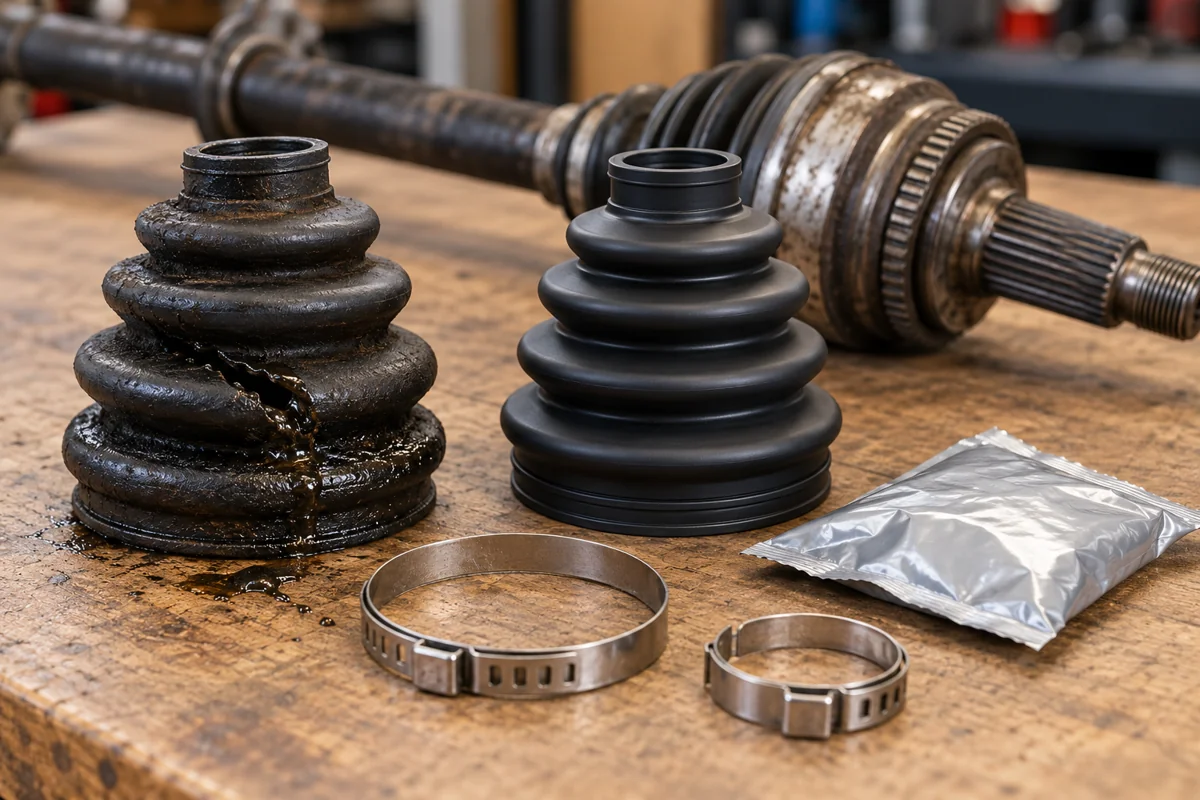

Boot replacement
Suitable when the protective cover has failed but the joint is still fit for service. The joint is inspected and cleaned as appropriate, then fitted with the correct boot, specified grease and secure clamps.
Best assessed promptly, before grease loss and contamination cause further damage.
Joint replacement
Useful when a separately serviceable inner or outer CV joint is worn and the remaining shaft is sound. Part availability, spline condition, movement and the other joint's condition affect whether this is good value.
Complete shaft replacement
Appropriate for a damaged shaft, unsuitable splines, multiple worn components or an assembly without a supported separate repair. Compare the supplied joints, boots and hardware rather than judging by the shaft price alone.
Grease is a clue
A spray of grease can come from a split boot or loose clamp. Its location helps identify the affected joint, but the joint's condition determines whether a boot-only repair is enough.
Describe when it happens
Noise and vibration patterns help narrow the inspection. They do not establish a failed shaft on their own.
Clicking while turning
A worn outer CV joint is one possibility, especially when the noise repeats with wheel rotation under drive. Nearby brake, wheel-bearing and suspension components still need consideration.
Shudder when accelerating
Inner-joint wear can contribute to a shake under load. Engine/gearbox mounts, tyres, wheels and other drivetrain faults can feel similar; when it starts and stops matters.
Clunk when taking up drive
Excess movement may involve a joint, fastening, mount or differential connection. We locate the movement rather than treating every change-of-load clunk as the same repair.
Vibration through the floor
On a vehicle with a longitudinal prop shaft, its joints, support bearing or condition may be relevant. Speed-related wheel and tyre problems must also be ruled out.
Severe vibration, heavy knocking, a loose component or loss of drive?
Stop safely and arrange assessment or recovery. Describe these symptoms when you call; continuing to drive can worsen damage. Do not inspect beneath a vehicle supported only by a jack.
If the cause is still unclear, our Volkswagen vibration diagnosis service considers the wider wheel, engine and drivetrain picture.

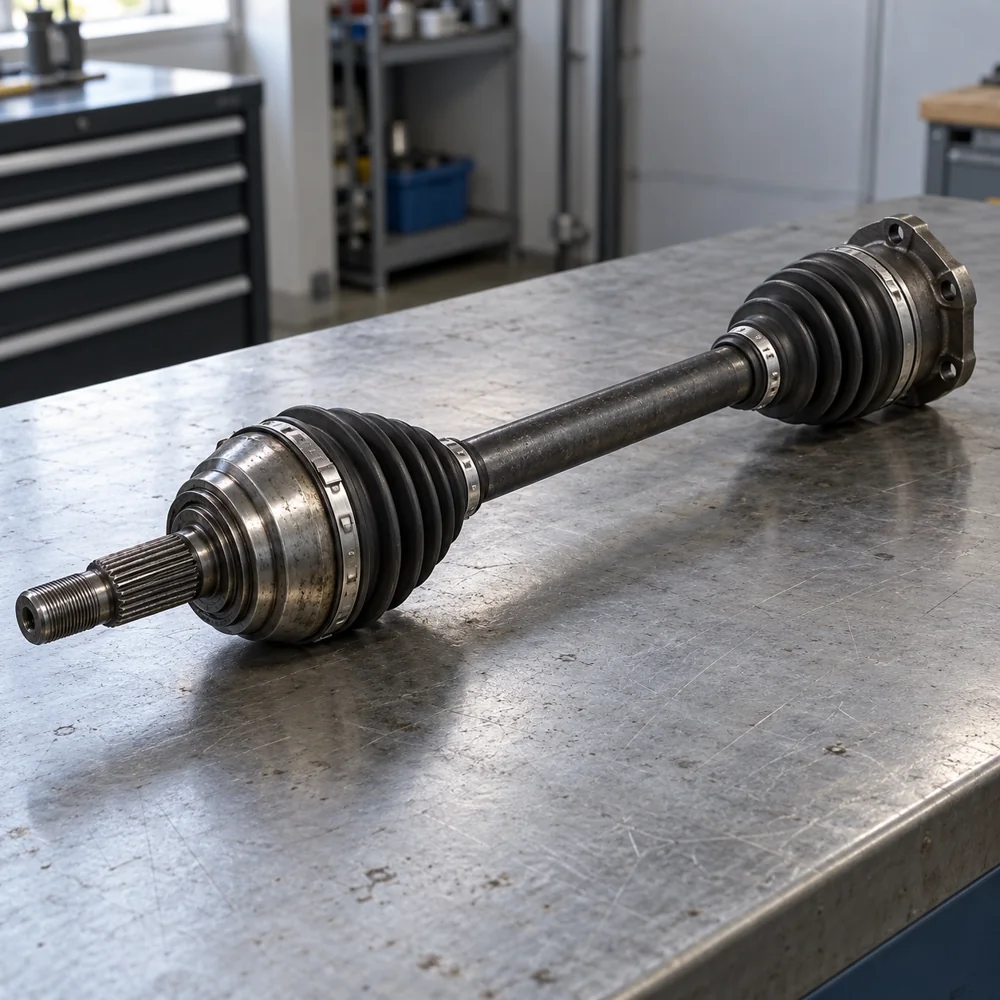

Which shaft are we talking about?
A wheel-side drive shaft, also called a CV axle or half-shaft, carries drive from the gearbox or differential to a driven wheel. It is different from a prop shaft running along the vehicle.
- Outer CV joint
- The wheel-side joint accommodates the movement needed at the hub. On a driven front axle, it also works through the steering angle.
- Inner CV joint
- The transmission/differential-side joint commonly allows the effective shaft length to change as the suspension moves. Its design must match the vehicle.
- Boots and clamps
- Keep the joint's lubricant in and contaminants out. Correct fit and sealing matter; installing a new cover over a worn joint does not repair its internal surfaces.
- Shaft, splines and connections
- The connecting shaft and its interfaces must remain sound. A bent or damaged assembly needs a different decision from an isolated boot defect.
Checks before parts are ordered
We combine your description with mechanical inspection and suitable testing. An electronic scan can identify related faults, but cannot certify that a CV joint is mechanically sound.
Confirm the conditions
- Turning, accelerating, cruising or lifting off
- Road speed, direction and where the vibration is felt
- Recent tyre, suspension or drivetrain work

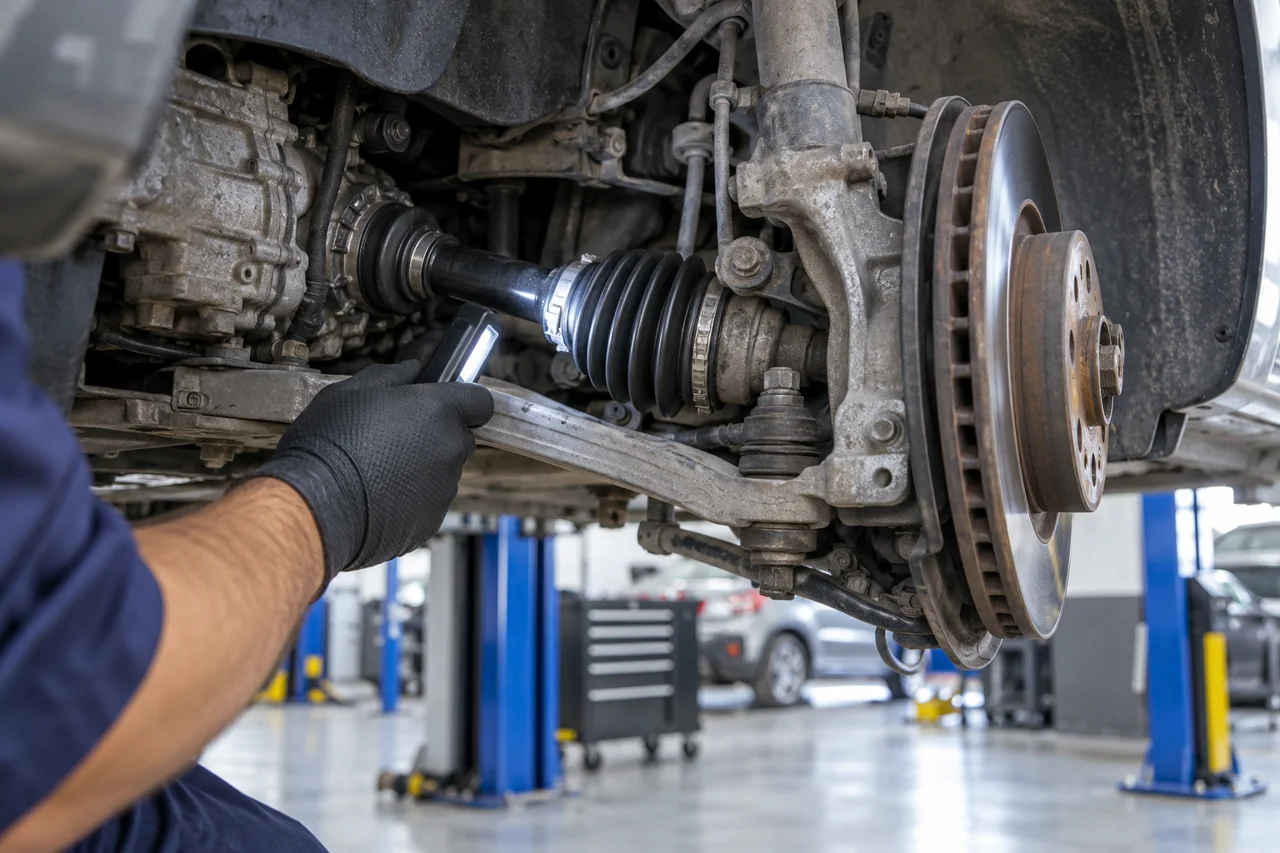

Inspect the affected assembly
- Boot sealing, grease leakage and contamination
- Joint movement, smoothness and connection security
- Shaft condition, splines and relevant supports
Check similar causes
- Wheel/tyre condition and wheel bearings
- Engine and gearbox mounts
- Nearby suspension, seals and drivetrain connections
Sometimes removal and closer examination are needed to decide whether a joint can be retained. We explain additional investigation before proceeding.
Longitudinal drive shafts
Prop-shaft and centre-bearing work
Applicable 4MOTION, Touareg and commercial-vehicle drivetrains can have a shaft carrying torque between drivetrain units. Their construction varies: do not assume every VW has the same centre bearing, coupling or universal joint.
We assess joint condition, supports, mountings and damage, then identify whether a supported component repair or complete assembly is appropriate. A bearing-only repair is unsuitable if other parts of the shaft are damaged.
For the model-specific price comparison, see our Touareg drive-shaft replacement service.
Check the whole assembly
Support-rubber damage, bearing roughness, joint wear and shaft damage can have different remedies. A visible failed support may not be the only fault.
Preserve the specified setup
Correct application, assembly orientation and required balancing matter. Any specialist refurbishment or balancing required is listed in your quote.
Separate adjacent repairs
Differential, transfer-unit or coupling faults are assessed on their own findings. Replacing the shaft is not a general cure for every 4MOTION noise.
Match the exact part
Golf, Polo, Jetta, Passat, Tiguan and Touareg can use different assemblies across engines, gearboxes and generations. A similar-looking shaft or the same model badge is insufficient for ordering.
- Vehicle
- VIN, model/year, engine, gearbox and front-wheel-drive or 4MOTION specification.
- Position
- Front/rear axle, left/right side and wheel-side shaft or longitudinal prop shaft.
- Assembly
- Correct length, connection/flange, splines, part-number revision and relevant sensor-ring arrangement.
Compare genuine and OEM options
A rebuilt or exchange shaft needs a clear description of what was renewed, its suitability and applicable coverage. A used assembly needs condition and compatibility assessment; fitting it can involve the same labour as fitting a new one.
Finish the repair properly
Installation and verification are part of the job, not just removing the noisy part.
- 01
Fit and secure
Use the required fasteners, joint lubricant, clamps and vehicle-specific tightening procedure. Protect boots, seals and nearby sensor wiring during access.
- 02
Inspect disturbed areas
Check seating, boot position, clearances and any relevant fluid leakage. Any required seal or fluid work is included in the agreed repair.
- 03
Assess wheel geometry
Alignment is considered when access disturbs relevant suspension settings or measurements show a need. Wheel alignment does not repair a worn CV joint or a prop-shaft imbalance.
- 04
Verify the result
Recheck the reported operating conditions with an appropriate road test when safe. Explain remaining unrelated findings at handover.
A clear plan before you approve
Our Al Quoz workshop provides findings, compatible parts choices and a written quote before repair. Old parts can be returned on request.
Send the useful details
Model, year, engine/gearbox if known, and when the noise or vibration occurs. You do not need to identify the failed side yourself.
Agree the timing
Access, part supply, joint serviceability and any specialist prop-shaft work determine the completion time. Unsafe vehicles may need transport; arrangements and charges are agreed separately.
Know the coverage
Your quote or invoice records the applicable parts and labour warranty conditions. A boot repair, new assembly and exchange unit can have different terms.
Drive shaft repair questions
Useful answers before choosing a joint or assembly.
How much does Volkswagen drive shaft repair cost in Dubai?+
General planning guides are AED 500–1,200 for CV-joint repair and AED 1,500–3,500 per wheel-side shaft. Compact models can cost less and genuine or larger assemblies can cost more. A Touareg-type complete prop-shaft replacement has a separate AED 3,000–6,500 guide. The written quote identifies fitting, extras and VAT treatment.
Can you replace only the CV boot?+
Yes, where inspection confirms the joint is serviceable and a suitable boot kit is available. The correct grease and clamps are needed. A new boot will not remove wear, pitting or excessive movement already present inside the joint.
Does clicking on a turn always mean a new drive shaft?+
No. A worn outer CV joint may be separately replaceable, and nearby wheel or suspension parts can produce similar noises. Inspection determines the cause and whether a joint repair or complete shaft offers better value.
Should both drive shafts be replaced together?+
Not automatically. Both sides should be inspected, but each replacement needs a reason. If the opposite shaft remains serviceable, a fault on one side alone does not establish that both need changing.
Is a prop shaft the same as a CV axle?+
A CV axle connects a gearbox or differential to a driven wheel. A prop shaft runs longitudinally between drivetrain units on applicable vehicles. Parts, supports, repair methods and prices differ, so the affected assembly must be identified first.
Will wheel alignment cure drive shaft vibration?+
Alignment corrects wheel geometry. It cannot restore a worn CV joint, bent shaft or damaged prop-shaft support. Alignment may still be needed after relevant suspension settings are disturbed, or if the vehicle has a separate geometry problem.
Is it safe to keep driving with the noise?+
There is no reliable remaining-mileage estimate from a noise description. Arrange assessment promptly. Stop safely and seek assistance for severe vibration, heavy knocking, loss of drive or a suspected loose component; do not continue solely because the car still moves.
Does a replacement shaft need coding or balancing?+
A mechanical wheel-side shaft replacement normally does not need coding. Any sensor-related checks depend on the work and vehicle. Prop-shaft repair can involve assembly-specific balancing or setup; this differs from wheel balancing and is identified in the repair plan.
Get the noise checked before ordering a shaft
Contact Volkswagen Repair Dubai with your model and symptoms. We will explain the assessment and suitable repair choices before you approve the work.
