In this guide
To read a VW engine oil dipstick, park on level ground with the engine warm, switch off and wait a few minutes, then pull the dipstick, wipe it, push it fully back in and pull it out again. The oil mark should sit inside the hatched area between the minimum and maximum marks. Add a little approved oil only if it is in the lower part of that area or below it.
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4. Reviewed by the technical team, updated October 2026.
Key takeaways
- To read your VW engine oil dipstick correctly, the car must be level and the oil given a few minutes to drain back.
- The safe range is the hatched area. Top of the area means do not add, bottom means add a little.
- Overfilling is as harmful as running low, so add oil in small amounts and recheck.
- A red oil pressure warning means stop the engine, whatever the dipstick says.
- Some newer VWs show the oil level electronically instead of using a dipstick.
How do you check the oil level on a VW?
A correct reading takes about five minutes. Rushing it is the most common reason for a wrong reading.
-
Park level
Use flat ground, not a sloped driveway or a kerb. A slope tips the oil to one end of the sump.
-
Warm, then wait
Check after a drive with the engine warm, switch off and wait a few minutes so oil drains back to the sump.
-
Pull and wipe
Pull the dipstick out, wipe it clean with a lint free cloth, then push it all the way back in.
-
Read the mark
Pull it out again and hold it level. Read where the oil film ends on the marked area.
-
Repeat if unsure
If the line is uneven, wipe and read again. Use the lower edge of a clear line.
The engine, exhaust and coolant parts get very hot. Keep hands and loose clothing away from the cooling fan, which can start even with the engine off.
What do the marks on a VW dipstick mean?
Most VW dipsticks have a minimum and a maximum mark with a hatched or textured area between them. Where the oil ends inside that area tells you what to do.
| Where the oil mark sits | What it means | What to do |
|---|---|---|
| Above the maximum mark | Overfilled | Do not drive far. Have the excess drained. |
| Upper part of the hatched area | Level is good | Do not add oil. |
| Middle of the hatched area | Acceptable | You may add a small amount of approved oil. |
| Lower part of the hatched area | Getting low | Add approved oil in small steps and recheck. |
| Below the minimum mark | Too low | Add oil before driving further, then find out why it dropped. |
Markings vary between engines. The owner manual for your car shows the exact zones.
What if your VW has no dipstick?
Some newer Volkswagens measure the oil level with a sensor and show it in the instrument cluster or infotainment menu. Some keep a dipstick as well, and some do not have one at all.
- Follow the conditions. The car usually needs to be level, warm and switched off for a set time before it shows a reading.
- A dash message asking you to add oil is the electronic version of a low dipstick reading.
- No reading available often means the conditions were not met. Try again after a drive.
- Check the manual. It says which method your car uses and where the menu is.
Reading looks wrong? Send a photo of the dipstick or dash message with your model and year.

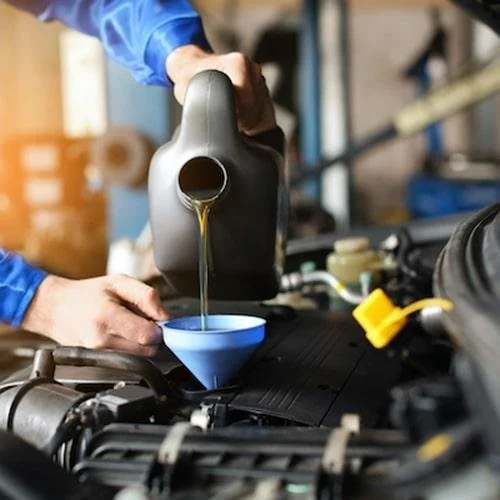

How much oil should you add to a VW?
Add a small amount at a time, about a quarter of a litre, then wait a minute and recheck. The gap between minimum and maximum on many engines is under a litre, so it is easy to overfill.
- Use the right oil
- Top up only with oil carrying the VW approval for your engine. Our guide to what happens with the wrong oil in a VW engine explains why.
- Use the filler cap
- Add oil through the cap on top of the engine marked with an oil can symbol, never through the dipstick tube unless the manual says so.
- Do not overfill
- Too much oil can foam, raise crankcase pressure and push oil into the intake.
- Note the amount
- Keep track of how much you add and when. It helps a technician judge oil use.
What do the VW oil warning lights mean?
Check the level or sensor
Stop when safe and follow the message. It usually means low level or an oil sensor fault. Check the level and top up with approved oil if needed.
Oil pressure warning
Stop as soon as it is safe and switch the engine off. Do not drive on, even if the dipstick shows oil. Arrange help.
A service reminder is different again. It means the scheduled oil service is due, not that there is a fault.
What does the oil on the dipstick tell you?
Colour alone does not tell you when oil needs changing, especially in a diesel where oil darkens quickly. Some findings do need attention.
Milky or creamy
Can mean coolant mixing with oil. Have it checked, as it may point to a head gasket problem.
Fuel smell
Thin oil that smells of fuel can mean fuel is diluting it, often from injector or short trip issues.
Shiny particles
Metal flakes can mean internal wear. Do not keep driving without a check.
Thick sludge
Usually long gaps between services or the wrong oil. It needs inspection before a simple change.
Why is my VW using oil between services?
Every engine uses a little oil, but regular top ups mean something is leaking or burning it. These are the usual places to look.
Valve cover gasket, oil pan, filter housing and turbo oil lines. Drips under the car or a burning smell are clues.
A failed PCV valve or oil separator can pull oil into the intake and cause whistling or rough idle.
Piston rings and valve stem seals let oil burn. Blue smoke on start or under power is a clue.
A worn turbo can leak oil into the intake or exhaust, often with smoke.
See our oil leak repair service, the PCV valve replacement page and the turbo oil leak repair page for each fault.
How often should you check VW oil in Dubai?
- 1Every few fuel stops
A quick check catches slow loss early.
- 2Before long drives
Check before a run to Hatta, Abu Dhabi or across the UAE.
- 3After a service
Confirm the level a day or two after any oil work.
- 4More often if older
Older or high mileage engines that use oil need closer watching.
Routine oil changes follow your service schedule. Our Volkswagen oil change service lists an indicative budget of AED 250 to 750 depending on engine and quantity.
Find out where the oil is going
Our Al Quoz 4 workshop checks for leaks, breather faults and oil burning, then gives a written quote before any repair.
Mistakes we see when owners check VW oil
Oil is still in the engine, so the level reads low.
The reading can be wrong by a large margin.
A half inserted dipstick gives a false low reading.
Adding a full litre at once often goes above the maximum.
Unapproved oil dilutes the correct fill.
Low oil pressure can destroy bearings in minutes.
Quick answers about VW oil levels
Where should the oil be on a VW dipstick? Anywhere inside the hatched area between the minimum and maximum marks, ideally in the upper half.
How long should I wait before checking? About five minutes after switching off a warm engine, with the car on level ground.
Can I check the oil with the engine cold? On dipstick models a cold reading can be taken, but VW cars without a dipstick need the engine warm.
What oil should I top up with? Oil with the same VW approval listed in your owner manual or on the service sticker.
Is it bad to overfill? Yes. Oil above the maximum mark should be drained back to the correct level before driving far.
Key VW oil level terms explained
These are the words you will see in the owner manual and on the dashboard when checking oil on a Volkswagen.
- Dipstick
- The metal or plastic rod in the engine that shows the oil level between a minimum and maximum mark.
- Hatched area
- The marked zone between the minimum and maximum lines. Oil anywhere inside it is acceptable on most VWs.
- Electronic level check
- A menu in the car that shows the oil level on models without a dipstick. It needs the engine warm and the car level.
- Oil consumption
- The oil an engine uses between services. Some use is normal, and a sudden increase is a reason to investigate.
- Overfilling
- Oil above the maximum mark. It can foam, raise crankcase pressure and push oil into places it should not go.
- Oil approval
- The VW number on the bottle, such as 504 00 or 508 00, that must match your engine when you top up.
What we see when owners check oil in Dubai
During services in our Al Quoz 4 workshop, the same few oil checking problems come up again and again. Avoiding them gives a reading you can trust.
A reading you can trust
Level ground and the right wait time make the difference.
-
Owners check on a sloping driveway or straight after switching off, so the reading looks low and they add oil that was not needed.
-
Oil of a different approval is used to top up, mixing specifications that the engine was not designed for.
-
The dipstick is read on one side only, when the oil line is clearer on the other side or after a second wipe.
-
A car with no dipstick is checked only through the screen while the engine is cold, so the system cannot give a reading.
-
Rising oil use is noticed but not recorded, so the distance and amount are not available when we investigate the cause.
What to send if your VW is using oil
If you are adding oil often, these details help us find out why before your visit.
- Model, year and engine
- How much oil you have added
- The distance between top ups
- The oil approval you used
- Any smoke from the exhaust
- Any oil marks under the car
- Any oil warning message
- When the last service was done
Send them on WhatsApp to 056 464 6081 and we will tell you what to check first.
Questions about reading a VW oil dipstick
Should I check VW oil hot or cold?
Volkswagen generally recommends checking with the engine warm, after switching off and waiting a few minutes for oil to drain back. A cold engine that has stood overnight also gives a usable reading. Avoid checking immediately after switching off, because much of the oil is still in the upper engine and the level reads low.
Where should the oil be on a VW dipstick?
Inside the hatched or textured area between the minimum and maximum marks. Near the top of that area means no oil is needed. Near the bottom means add a small amount of approved oil and recheck. Above the maximum mark is overfilled and should be corrected.
How much oil does it take to go from minimum to maximum?
On many VW engines it is under a litre, but it varies by engine. That is why oil should be added in small steps of about a quarter litre, with a recheck each time. The owner manual gives the figure for your engine if you want to be exact.
Is overfilling engine oil dangerous?
It can be. Too much oil can be whipped into foam by the crankshaft, reduce lubrication, raise crankcase pressure and force oil into the intake or past seals. A small overfill just above the mark is less serious, but a clear overfill should be drained before long or hard driving.
My VW has no dipstick. How do I check the oil?
Some newer models measure oil level with a sensor and show it in the instrument cluster or infotainment menu. The car usually needs to be level, warm and switched off for a while before it displays the level. The owner manual explains the exact menu and conditions for your model.
Can I drive with the oil warning light on?
An amber oil light means check the level soon and follow the message. A red oil can means low oil pressure, so stop as soon as it is safe and switch off the engine. Driving with a red oil pressure warning can damage the engine within minutes, even if some oil shows on the dipstick.
Why is my VW losing oil but there is no leak?
The engine may be burning it. Worn piston rings, valve stem seals, a turbo seal or a failed crankcase breather can all consume oil without drips. Blue smoke, oily spark plugs or oil in the intake are clues. A workshop can measure consumption and test these parts before recommending a repair.
What colour should VW engine oil be?
New oil is amber, and it darkens with use, faster in diesels. Colour alone does not show when oil needs changing, so follow the service schedule. Milky oil, a fuel smell, shiny particles or thick sludge are the signs that need a technician to look.
Which oil should I use to top up my VW?
Use oil that carries the Volkswagen approval for your engine, such as VW 504 00 or 508 00 depending on the engine. The approval is printed on the bottle and listed in your manual or service records. Topping up with an unapproved oil dilutes the correct fill.
Get your oil checked in Al Quoz 4
Volkswagen Repair Dubai is an independent VW workshop in Al Quoz 4, open Monday to Saturday, 9am to 7pm. Send your model, year and what you found on the dipstick, and we will tell you what to do next.
See what an oil service includes on our Volkswagen oil change page.
How this guide was written
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4 and reviewed by our technical team in October 2026. It is based on the diagnosis steps we follow on Volkswagen cars in Dubai, together with Volkswagen owner information and the technical sources listed below.
Prices are the indicative guide ranges published on our own service pages. They are planning figures, not fixed quotes, and the final price always follows an inspection of your car. We update this guide when our service pages or the manufacturer guidance changes.
Technical references
- Volkswagen warning and indicator lights guide, explaining the oil pressure and oil level warnings shown on Volkswagen dashboards.
