A VW Haldex service renews the oil inside the electronically controlled coupling that sends drive to the rear axle on Haldex based 4MOTION models, and checks its pump and filter or screen. It is a separate job from a DSG fluid change and from rear differential oil. The Mk7 Golf R schedule from DAP lists Haldex fluid every 30,000 miles and DSG fluid every 40,000 miles.
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4. Reviewed by the technical team, updated October 2026.
Key takeaways
- The Haldex coupling is a multi plate clutch, pressed by an electro hydraulic oil pump, that connects the rear axle when the car needs it.
- Haldex oil, DSG fluid and rear final drive oil are three separate circuits. Changing one does not service the others.
- Volkswagen lists the Golf R, Tiguan Allspace R Line and Arteon R Line 4MOTION with this coupling based system, now called Gen 5 AWD.
- The Touareg uses a Torsen type system, and the Amarok uses a Torsen type system with a transfer case, so a Haldex service does not apply to them.
- For the Mk7 Golf R, DAP lists Haldex fluid every 30,000 miles, about 48,000 km, and DSG fluid every 40,000 miles, about 64,000 km.
- A neglected coupling often shows up as the car behaving like a front wheel drive car, with wheelspin when pulling away and an all wheel drive fault stored.
What is a VW Haldex coupling and what does a Haldex service involve?
On a Volkswagen with a transverse engine and 4MOTION, the engine drives the front wheels all the time. A propshaft runs to the back of the car, and the Haldex coupling sits in front of the rear final drive. Inside it is a pack of clutch plates. When the plates are pressed together, drive flows to the rear axle. When they are released, the rear axle is decoupled.
Volkswagen describes the coupling in the Golf R as a fifth generation Haldex coupling, activated by an electro hydraulic oil pump. A control unit decides how hard to close the clutch, based on how the load on each axle changes while you drive. In normal cruising the front axle does most of the work, and when needed nearly all of the drive torque can be sent to the rear axle.
- The clutch pack transfers drive from the propshaft to the rear final drive.
- The oil pump builds the pressure that closes the clutch plates.
- The control unit reads wheel speed, throttle and other signals and sets the clutch pressure.
- The coupling oil carries the pressure, cools the plates and carries away fine wear material.
- The filter or screen catches that material before it reaches the pump, depending on the generation.
A Haldex service drains the old coupling oil, checks or cleans the filter or pump screen where the procedure allows, refills with the specified oil to the correct level and then checks the system with VW diagnostics. It is maintenance that keeps the pump and plates working, not a repair for a coupling that has already failed.
Which VW models use Haldex based 4MOTION?
4MOTION is the Volkswagen name for all wheel drive, but the hardware underneath is not the same on every model. Volkswagen itself separates three layouts, and only one of them needs a Haldex coupling service.
Gen 5 AWD, previously Haldex
Volkswagen lists this setup in the Golf R, the Tiguan Allspace R Line and the Arteon R Line 4MOTION. The Mk7 and Mk8 Golf R both use a Haldex coupling. These cars need coupling oil service on top of engine and DSG servicing.
Touareg
Volkswagen describes the Touareg system as a torque sensing Torsen type setup. It is built around a longitudinal engine and a centre unit, not a rear Haldex coupling, so the service items are different.

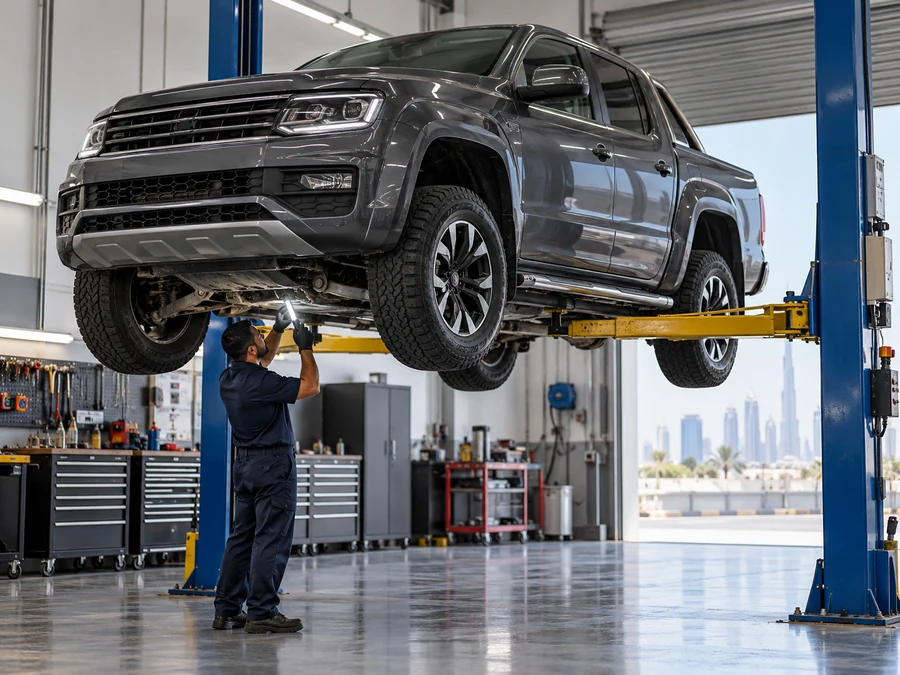

Amarok
The Amarok uses a Torsen type setup with a transfer case. Its transfer case and axle oils follow the Amarok schedule, and a Haldex service package does not apply.
Check by VIN
Badges and trim names are not enough. We read the VIN and the drivetrain data to confirm which system your car has before quoting any oil service.
If you drive a Golf R, the drivetrain notes on our Golf GTI and Golf R servicing section list what else the R needs. Owners of the Tiguan and Arteon should confirm whether their car is a front wheel drive or a 4MOTION version first, because many cars in Dubai are front wheel drive only.
How often does a VW Haldex coupling need servicing?
Volkswagen schedules vary by model, market and year, so the owner manual and service booklet for your car come first. For the Mk7 Golf R, the DAP service schedule gives a clear example of how the Haldex and DSG intervals sit side by side.
-
30,000 milesabout 48,000 km
First Haldex fluid service on the Mk7 Golf R schedule. The coupling oil is changed while the DSG fluid is not yet due.
-
40,000 milesabout 64,000 km
First DSG transmission fluid service on the same schedule. This is a gearbox job and does not touch the coupling oil.
-
60,000 milesabout 97,000 km
Second Haldex fluid service. DAP also marks a manual transmission fluid service here for manual cars.
-
80,000 milesabout 129,000 km
Second DSG fluid service on the table.
-
90,000 milesabout 145,000 km
Third Haldex fluid service.
-
120,000 milesabout 193,000 km
Both fall due together, the fourth Haldex service and the third DSG service.
Dubai driving is hard on fluids, with long periods of heat, stop start traffic and, for some owners, sand and track use. If the service history is missing, or you are not sure when the coupling oil was last changed, we treat it as due. A car bought used with no record of a Haldex service is a common case.
How is Haldex oil different from DSG fluid and rear differential oil?
A 4MOTION car with a DSG gearbox has several separate oil circuits in its drivetrain. They do different jobs, use different oils and are drained and filled in different ways. Topping up or changing one does nothing for the others.
| Circuit | What the oil does | Where it is | Service note |
|---|---|---|---|
| Haldex coupling oil | Carries pump pressure that closes the clutch plates and cools them | In the coupling housing ahead of the rear final drive | Mk7 Golf R schedule lists every 30,000 miles, with filter or screen checks by generation |
| Wet clutch DSG fluid | Lubricates the gearbox and operates and cools the gearbox clutches | In the DSG gearbox with the mechatronic unit | Mk7 Golf R schedule lists every 40,000 miles, with filter where fitted |
| Rear final drive oil | Lubricates the crown wheel, pinion and bearings of the rear differential | In the rear differential housing | Checked for level, leaks and condition, refilled with the specified gear oil |
| Front angle drive oil | Lubricates the bevel gears that turn drive towards the propshaft | Beside the gearbox at the front | Checked for leaks and condition during driveline work |
The DSG side is covered in detail on our DSG gearbox repair page, including the difference between dry clutch and wet clutch gearboxes. Rear final drive noise and leaks are covered on our differential and 4MOTION repair page.
What do the Haldex pump and filter actually do?
The coupling only works if the pump can build pressure. Everything in a Haldex service is aimed at keeping that pump fed with clean oil.
Electro hydraulic pump
A small electric pump on the coupling builds the oil pressure that closes the clutch plates when the control unit asks for rear drive.
Filter or screen
Depending on the generation, a filter or a fine screen at the pump catches clutch wear material. When it clogs, the pump struggles to build pressure.
Clutch plates
Every time the coupling slips and grips, the plates shed fine material into the oil. Over time the oil darkens and thickens.
Control unit
The coupling control unit stores faults if pressure or response is not what it expects, which is why a scan is part of every service.
There is no single filter package that fits every Haldex generation. Access to the pump, the filter or screen and the fill procedure differ by coupling version, so we identify the unit first and then follow the procedure for it.
What are the symptoms of a neglected Haldex coupling?
A coupling that has gone a long time without fresh oil rarely fails all at once. It usually loses rear drive gradually, and the driver notices the car feeling different before any warning light appears.
The front wheels spin on a quick start or on a slippery surface, as if the car were front wheel drive only.
Early sign
Less traction out of corners and more understeer than the car used to have, especially on a Golf R.
Early sign
A 4MOTION or all wheel drive fault in the coupling control unit, sometimes with a warning message in the cluster.
Check soon
Live data shows the coupling is asked to close but the rear axle does not take up drive.
Check soon
A new noise from the back of the car, or oil around the coupling or rear final drive housing.
Inspect now
These signs can also come from wiring, a control unit fault, low battery voltage or a worn rear final drive. That is why we test the system before deciding whether a service, a pump or a deeper repair is needed.
Can I keep driving with a Haldex fault?
When a Haldex coupling stops working, most cars carry on as front wheel drive. That makes it possible to drive carefully to a workshop, but there are limits.
-
Read the warning
Note any message on the cluster and whether other warnings, such as ABS or stability control, are on as well.
-
Drive gently
Avoid hard launches, wet roads and sand until the car is checked, because traction is reduced.
-
Listen for noise
A grinding or knocking noise from the rear is a reason to stop driving and arrange recovery.
-
Look for leaks
Oil under the rear of the car means one of the rear circuits is losing oil.
-
Book a check
Arrange a scan and inspection soon, because a starved pump can lead to further wear.
Stop safely and arrange recovery if the rear of the car grinds, knocks or binds on tight turns, if you see a lot of oil under the car, or if the car will not drive normally. These point to mechanical damage rather than a simple oil service, and the right towing method depends on the drivetrain.
Not sure if your VW has a Haldex coupling? Send us the model, year and VIN, and we will tell you which system your car has and whether its coupling service is due.

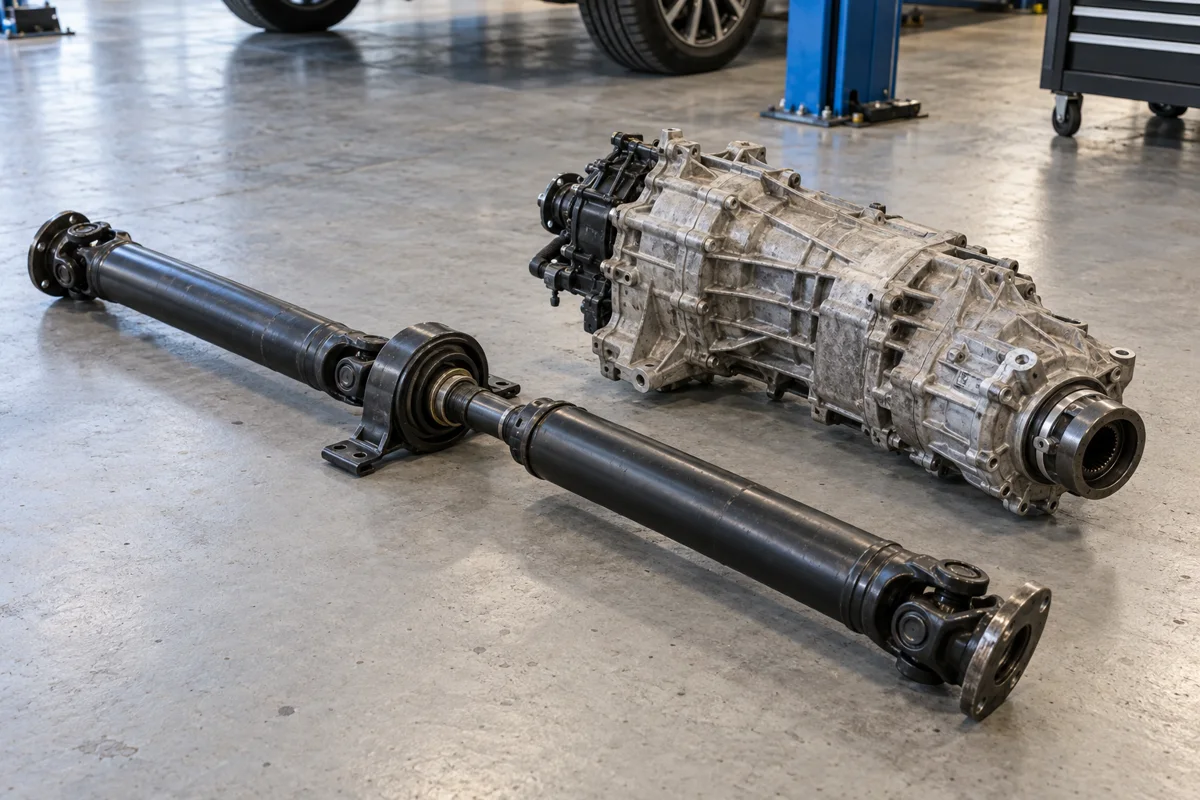

How do the Touareg and Amarok drivetrains differ?
The Touareg and Amarok carry the 4MOTION badge too, but they are built very differently from a Golf R or a Tiguan. Volkswagen describes both as Torsen type systems, and the Amarok adds a transfer case.
- Engine layout
- The engine sits lengthways, so drive passes through a centre unit to front and rear propshafts instead of through a rear coupling.
- Torque sensing
- A Torsen type unit splits drive mechanically according to grip, rather than waiting for an electronic clutch to close.
- Transfer case
- On the Amarok the transfer case has its own oil and its own checks, separate from engine, gearbox and axle oils.
- Service items
- These cars need their transfer case and axle oils checked to their own schedule. A Haldex coupling service is not part of it.
For model specific advice, see our Touareg repair page and Amarok repair page.
Why does Dubai driving matter for Haldex servicing?
The same coupling can age quickly or slowly depending on how and where the car is driven. These local conditions are the ones we see most.
Treat unknown history as due
If there is no record of a coupling oil change, the first service resets the clock and lets us see the oil condition.
Long hot running
Summer heat and slow traffic keep drivetrain oils hot for long periods.
Soft surfaces
Sand and gravel make the coupling slip and grip more often, which adds wear to the plates.
Launches and track days
Repeated hard starts on a Golf R ask the coupling for full rear drive again and again.
What do we check during a VW Haldex service?
A Haldex service in our Al Quoz 4 workshop follows the same order every time, so the condition of the coupling is recorded as well as the oil being changed.
- 1Confirm the system
Read the VIN and drivetrain data to confirm the coupling generation and the specified oil.
- 2Scan first
Read the coupling control unit and related units, and save any stored faults.

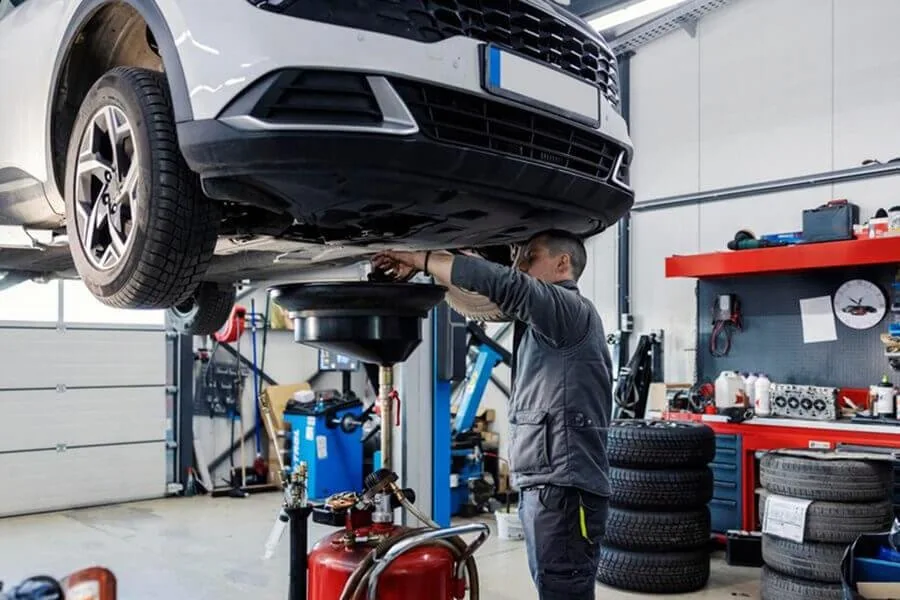

- 3Drain and inspect
Drain the old oil and look at its colour and any debris, then check the filter or pump screen.
- 4Refill and verify
Refill to the correct level, run any basic setting the procedure needs and check for leaks.
While the car is raised, we also look at the rear final drive for leaks, the propshaft and its joints, and the rear driveshafts. If anything else needs work, it goes on the written quote for you to approve first.
How much does a Haldex service cost in Dubai?
The coupling generation, the oil, the filter or screen and the access time all change the price, so most Haldex work is quoted after we identify the unit and test it. These guides come from our own service pages and are alternatives, not one bill.
Guide
Scan, live data and first checks, from our DSG repair page.
AED 150 to 500
Our Tayron page lists coupling oil service from AED 500. Other models are quoted after testing.
From AED 500
Specified fluid and filter where fitted, from our DSG repair page.
AED 700 to 1,500
Starting guide from our differential page, when the final drive needs work.
From AED 1,500
Only after testing shows the pump or coupling is the cause.
Quoted after testing
Indicative guides only. You approve the written quote before work starts, and any extra work is carried out only after your approval.
Book a Haldex service that checks the whole coupling
Our Al Quoz 4 workshop confirms your 4MOTION system by VIN, scans the coupling, inspects the old oil and the filter or screen, and gives you a written quote before any work.
Haldex service mistakes we see
The gearbox and the coupling have separate oils.
A clogged filter or screen can still starve the pump.
Coupling oil, gear oil and DSG fluid are not interchangeable.
Wiring, voltage and oil condition are tested before parts.
The Touareg uses a Torsen type system.
Lost rear drive is an early warning worth checking.
Quick answers about VW Haldex service
What is a Haldex service? A coupling oil change with filter or screen checks and a scan.
Is it the same as a DSG service? No, the DSG has its own fluid.
How often on a Mk7 Golf R? DAP lists every 30,000 miles, about 48,000 km.
Does a Touareg need it? No, the Touareg uses a Torsen type system.
Will it fix a failed coupling? Not always, as damage needs a repair.
Key Haldex and 4MOTION terms explained
These terms appear on service invoices, scan reports and quotes.
- 4MOTION
- The Volkswagen name for all wheel drive, used across several different hardware layouts.
- Haldex coupling
- An electronically controlled multi plate clutch that connects the rear axle on transverse engine models.
- Gen 5 AWD
- The current Volkswagen name for the fifth generation coupling based system.
- Torsen
- A torque sensing mechanical unit that splits drive according to grip, used in the Touareg and Amarok.
- Final drive
- The rear differential, with its crown wheel and pinion, that turns drive to the rear wheels.
- Angle drive
- The front bevel gearbox that turns drive from the gearbox towards the propshaft.
- XDS plus
- An electronic function that works like a differential lock across the axle to reduce understeer in fast corners.
What we check first on a 4MOTION complaint
Every 4MOTION complaint in our Al Quoz 4 workshop starts with the same checks, so the simplest real fix is found before any large part is quoted.
System, scan, oil, then parts
The coupling is condemned last, not first.
-
We confirm by VIN whether the car is front wheel drive, Haldex based 4MOTION or a Torsen type system.
-
We test battery voltage, because low voltage can store faults in several control units at once.
-
We read the coupling control unit with VW diagnostics and check pump operation in live data.
-
We drain and inspect the coupling oil and the filter or screen, and look at the rear final drive and propshaft.
-
Only then do we decide between an oil service, a pump repair or a coupling repair, and explain the choice in writing.
What to send before your visit
A few details help us confirm the system and whether the service is due.
- Model, year and mileage
- VIN or a photo of the registration card
- Last Haldex service date
- Last DSG service date
- A photo of any warning
- When the problem happens
- Any recent tyre changes
- Any scan report you have
Send them on WhatsApp to 056 464 6081 and a technician will reply.
Questions about VW Haldex and 4MOTION servicing
What is a VW Haldex service?
A VW Haldex service drains and renews the oil inside the coupling that connects the rear axle on Haldex based 4MOTION models. The filter or pump screen is checked or cleaned where the procedure allows, the coupling is refilled with the specified oil, and the system is scanned with VW diagnostics. It keeps the pump and clutch plates working properly.
How often should a VW Haldex coupling be serviced?
Follow the schedule for your model, market and year first. As an example, the DAP service schedule for the Mk7 Golf R lists Haldex fluid every 30,000 miles, about 48,000 km. In Dubai heat, with sand or hard driving, and with no service record, we treat the coupling oil as due and check its condition.
Is a Haldex service the same as a DSG service?
No. The DSG gearbox and the Haldex coupling have separate oil circuits with different fluids and procedures. For the Mk7 Golf R, DAP lists DSG fluid every 40,000 miles and Haldex fluid every 30,000 miles. Changing the DSG fluid does nothing for the coupling, and changing the coupling oil does nothing for the gearbox.
Which Volkswagen models use a Haldex coupling?
Volkswagen lists its coupling based Gen 5 AWD system, previously called Haldex, in the Golf R, the Tiguan Allspace R Line and the Arteon R Line 4MOTION. Other 4MOTION versions of transverse engine models may use it too. We confirm the system by VIN before quoting, because many similar looking cars are front wheel drive.
Does the Touareg or Amarok need a Haldex service?
No. Volkswagen describes the Touareg system as a torque sensing Torsen type setup, and the Amarok as a Torsen type setup with a transfer case. Neither uses a rear Haldex coupling. Their transfer case and axle oils are checked to their own schedules, which we confirm from the VIN and service history.
What are the signs that a Haldex coupling needs attention?
Common signs are front wheelspin when pulling away, the car feeling like front wheel drive, an all wheel drive fault or warning, and the rear axle not engaging in live data. A new noise or an oil leak at the rear also needs a check. These signs can come from other faults, so testing comes first.
Is Haldex oil the same as rear differential oil?
No. The Haldex coupling oil works the clutch plates through the pump, while the rear final drive uses gear oil to lubricate the crown wheel, pinion and bearings. They sit close together but are separate circuits with different oils. Filling one circuit with the other oil can cause problems, so we use the specified oil for each.
Can a Haldex service fix a car that has lost rear drive?
Sometimes. If the filter or screen was clogged and the oil was old, a service can bring back normal pump pressure. If the pump, wiring, control unit or clutch plates have failed, a service alone will not fix it. We test the system first, so you know whether you need maintenance or a repair before paying for either.
How much does a Haldex service cost in Dubai?
Our Tayron page lists a 4MOTION coupling service from AED 500, and other models are quoted after we identify the coupling and test it. An initial diagnostic assessment on our DSG page is AED 150 to 500. Pump or coupling repairs are quoted after testing, and you approve a written quote before any work starts.
Can I drive with a 4MOTION fault on my VW?
Most cars carry on as front wheel drive when the coupling stops working, so you can usually drive gently to a workshop. Avoid hard starts, wet roads and sand. If the rear grinds, knocks or binds, or you see a lot of oil under the car, stop safely and arrange recovery with the correct towing method.
Get your Haldex coupling checked in Al Quoz 4
Volkswagen Repair Dubai is an independent VW workshop in Al Quoz 4, open Monday to Saturday, 9am to 7pm. Send your model, year and VIN, and we will confirm your 4MOTION system and whether the coupling service is due.
See repair options on our differential and 4MOTION repair page and our DSG gearbox repair page.
How this guide was written
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4 and reviewed by our technical team in October 2026. It is based on the 4MOTION and drivetrain work we carry out on Volkswagens in Dubai, on Volkswagen information about its all wheel drive systems and on the published Mk7 Golf R service schedule listed below.
Drivetrain layouts, oils and service intervals differ between models, markets and years, so always follow the service schedule for your car. Mileage figures are converted to kilometres and rounded. Prices are the indicative guides published on our own service pages, not fixed quotes.
Technical references
- DAP, service schedule for the Mk7 Golf R, listing Haldex fluid service every 30,000 miles and DSG fluid service every 40,000 miles.
- Volkswagen Newsroom, 4MOTION all wheel drive in the Golf R, describing the fifth generation Haldex coupling, its electro hydraulic oil pump and torque distribution.
- Volkswagen Malaysia, 4MOTION explained, naming the Gen 5 AWD models and the Torsen type systems in the Touareg and Amarok.
