Touareg sitting low, rattling at start-up, clunking underneath or due a service? Our independent Al Quoz 4 workshop identifies the generation, engine and fitted systems before recommending work. Guide budgets include oil service AED 450–900, selected air springs AED 2,200–4,500 per corner and selected chain work AED 5,500–12,000. The quote defines parts, access and confirmed findings; later hybrid/high-voltage work requires separate support confirmation.
Three Touareg generations share the road in the UAE, and each one has its own engines, gearbox and weak points. Model year helps narrow the vehicle; engine/gearbox codes and fitted equipment establish parts and procedures.
Air springs and compressor, VR6 timing chains, V8 coolant pipes, transfer case, propshaft centre bearing
Carbon on the intake valves, water pump and thermostat leaks, propshaft centre bearing, ageing air springs
Innovision screen and software faults, 12 volt battery drain, air suspension, heavy brake wear
Not sure which engine you have? Send a photo of the registration card and we confirm the engine and gearbox codes before quoting.
Pick the system that is giving you trouble. Each link opens a detailed Touareg guide, or jumps to the job further down this page.
Not sure what the fault is? Our Touareg common problems guide lists the faults by year and engine. Driving a smaller Volkswagen SUV? See our VW Tiguan and VW Teramont guides.
Choose your generation to see what we see most, the usual cause, the test we run before any part is ordered, and a typical budget.
These are the repairs that worry owners most. Here is what goes wrong, how we confirm it and what it usually costs.
Heat and dust age the rubber air springs, and a single slow leak makes the compressor run until it burns out. We find the leaking spring, line or valve block first, then replace it and check the compressor so the new part is not overworked. After fitting we calibrate the ride height with VW software. The full guide is on our Touareg air suspension page.

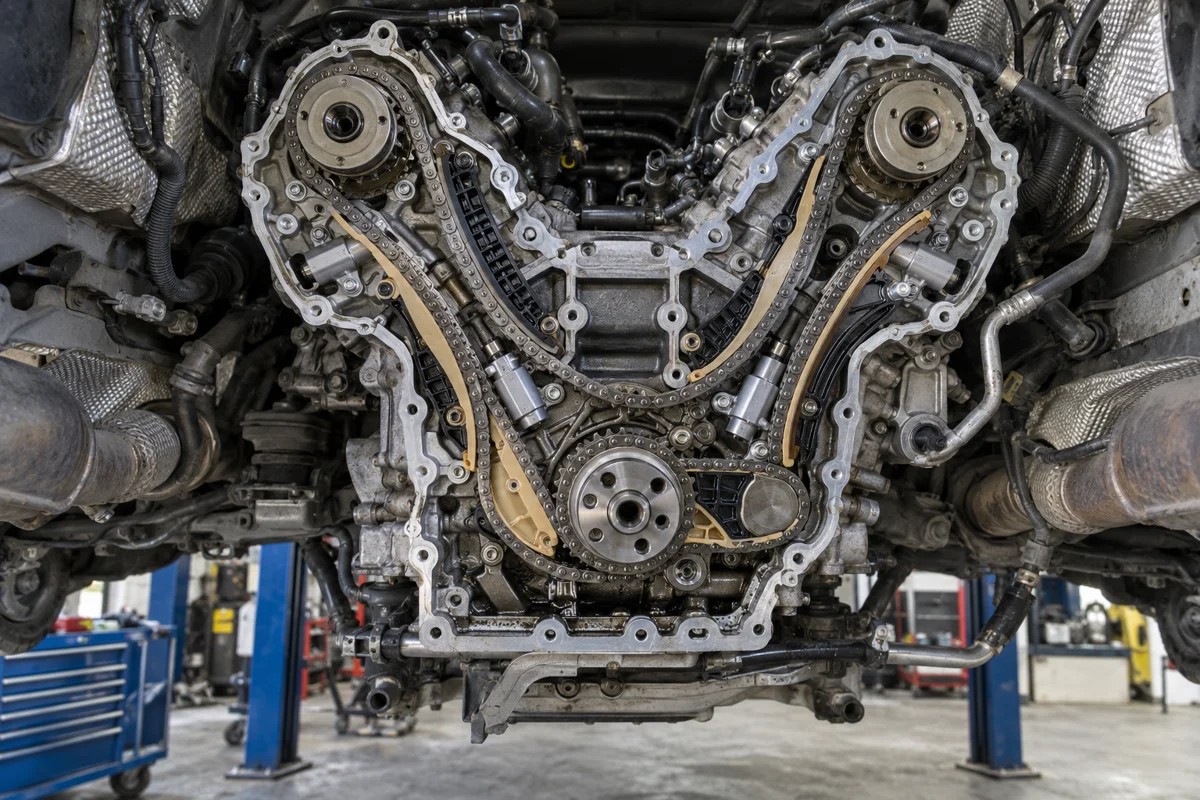

Touareg timing drives differ. Relevant VR6/V6 and later FSI engines use chains; early 4.2-litre five-valve V8 engines use a toothed camshaft belt. Confirm engine code before selecting work or schedule. For chain work, timing data, lubrication and mechanical findings guide diagnosis; a deviation reading alone does not prove wear. Access and kit contents are defined for the actual engine.
The Touareg sends power to all four wheels through a transfer case and a two piece propshaft with a rubber centre bearing. Mismatched tyres strain the transfer case, and the centre bearing wears with age. We check tyre sizes, read the 4MOTION data and inspect the shaft on the lift before quoting a bearing, a shaft or a reconditioned transfer case.

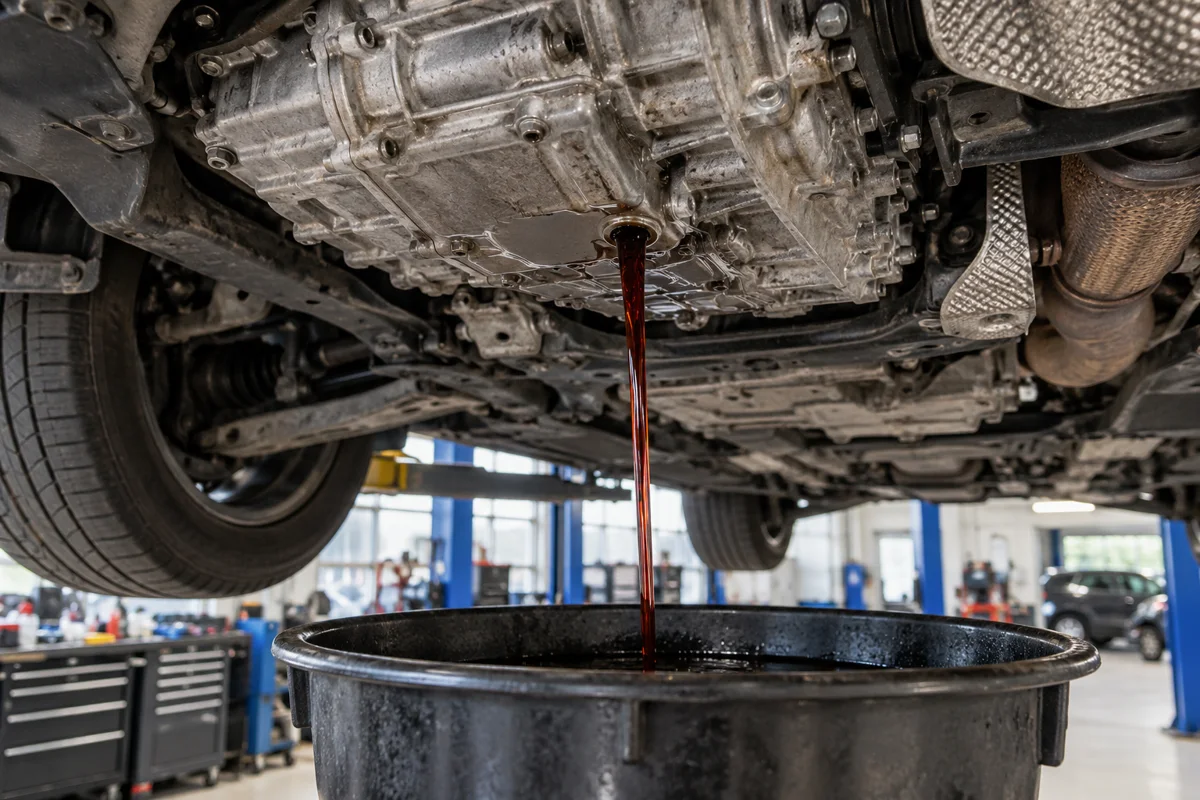

Touareg conventional automatics vary by generation and powertrain. Confirm the gearbox code, symptoms, correct fluid-level procedure and fault/mechanical findings. A fluid/filter service, software or basic setting is selected only when appropriate; it cannot repair worn friction components. Rebuild or replacement requires a separately defined quotation.
Touareg engines differ in timing drive, cooling layout, injection and emissions equipment. These are investigation examples, not measured failure rankings. Confirm the engine and market before choosing tests or parts; an early 4.2 five-valve V8 is not the same timing application as a later V8 FSI.
The early petrol V6 of the first Touareg.
Direct injection petrol V6 from 2007, used on most Gen 2 cars.
The top petrol engine on earlier Touaregs.
Less common in the UAE, but we see imported diesel Touaregs.
The petrol V6 on most UAE Gen 3 cars, still young.
Timing chain work for every engine is covered on our Touareg timing chain page. Confirm the actual engine and applicable technical information rather than diagnosing from a year-based fault list.
The jobs we do most weeks on Touaregs, with the signs to look for, what we check first and a typical price.
Oil service due under the engine-specific plan; low oil needs assessment, while colour alone does not define service life
Fully synthetic oil to the VW approval your engine needs, a genuine or OEM filter, a fault scan and a check of brakes, tyres, fluids and the air springs. Large V6 and V8 engines take more oil, so the engine sets the price.
See the service plan
Slow crank, start stop off, battery warning, flat after a few days
Battery type, position, number and registration requirements vary with generation and equipment. We test the battery and charging first, fit the correct AGM size and code the new battery to the car so the charging system treats it properly.

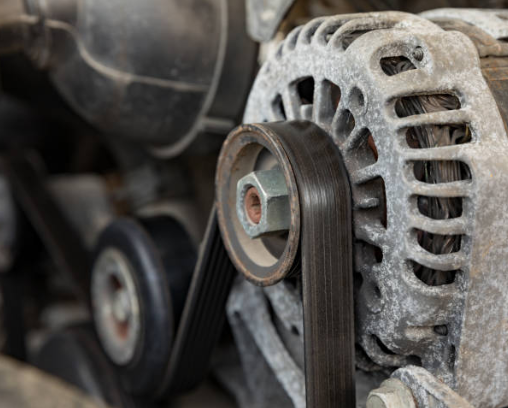

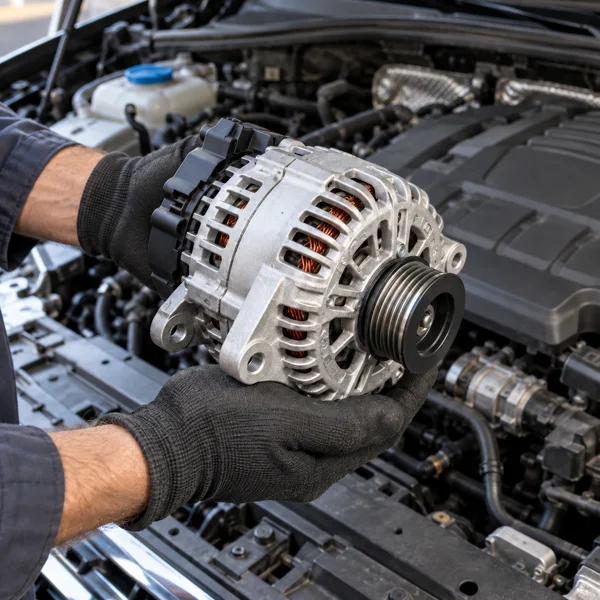

Battery light while driving, dim lights, flat battery, whine from the engine
We measure charging voltage and current under load to separate an alternator fault from a battery or wiring fault. If it has failed, we fit a new or remanufactured unit with the correct pulley and check the belt and tensioner at the same time.

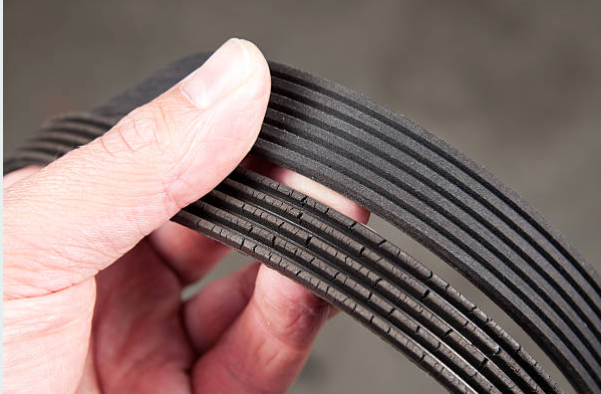

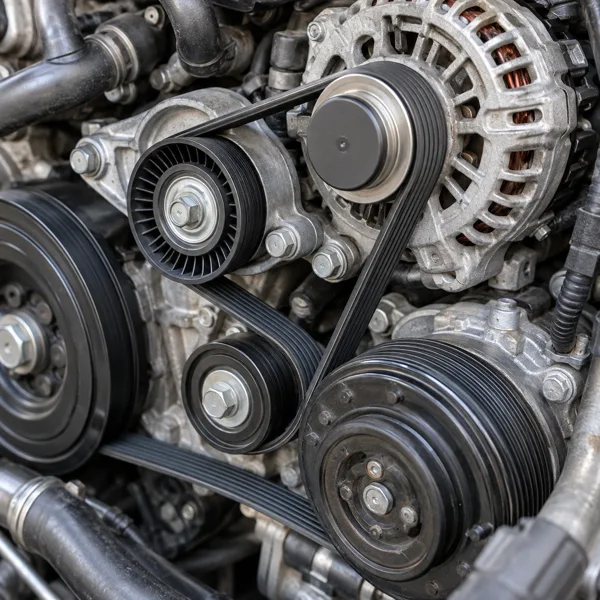

Squeal at cold start, AC or battery light flickering, cracked belt
Auxiliary belt routing and the water-pump drive vary by engine. Identify what the belt actually drives before assessing the effects of a failure. We check tensioner movement, pulley bearings and belt wear, then replace the belt and tensioner together when the tensioner is weak.

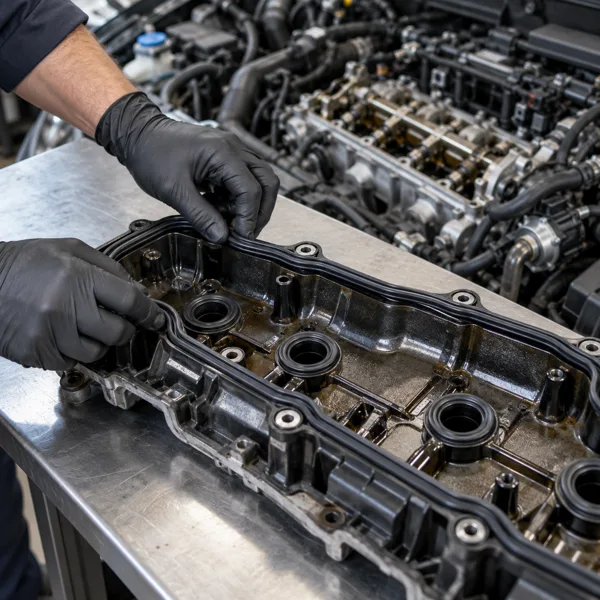

Burning oil smell, smoke from the engine bay, oil in the spark plug wells
A hard gasket lets oil run onto the exhaust or into the plug wells, where it can cause misfires. We confirm the leak with UV dye, fit a new gasket and seals to VW torque, and check the plugs and coils for oil damage.
Touareg oil leak guide
Clicking on full lock, grease inside the wheel, vibration accelerating
A torn CV boot lets sand in and grease out, and the joint then wears fast. Caught early, a new boot saves the joint. If it already clicks, we fit a new joint or complete drive shaft. Vibration from under the middle is usually the propshaft instead.
Propshaft and transfer case

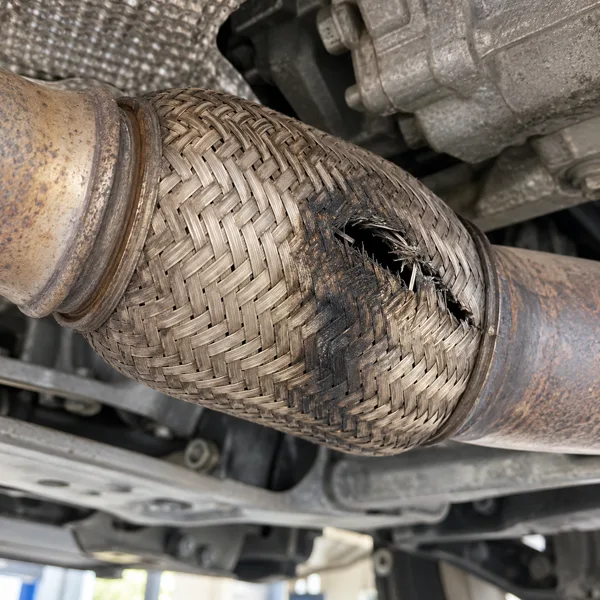

Louder exhaust, blowing or rattling underneath, exhaust smell in the cabin
The braided flex section absorbs engine movement and cracks with age and heat. We find the leak on the lift and weld in a new flex section instead of replacing the whole system, then check for leaks that could upset the oxygen sensors.
A Touareg is heavy, so worn drivetrain parts and brakes show up as vibration sooner than on a smaller car. When the shake happens tells us where to look.
Note whether it comes when braking, when pulling away, at a steady speed or in tight turns, and send it with the year and mileage.
A pulsing pedal or steering shake under braking usually means uneven or worn front discs. The weight and Dubai heat work the brakes hard.
Pads AED 600 to 1,100 per axle, discs and pads AED 1,600 to 2,800A shake or clunk from under the middle of the car, often felt from low speeds upwards, points to a worn centre bearing on the two piece propshaft.
AED 1,200 to 2,500Shudder or binding in tight turns can come from the transfer case clutch or its motor, or from tyres that do not match in size or wear.
Reconditioned unit AED 5,000 to 9,000, tyres checked firstA hum or shake that grows with road speed is often wheel balance, a damaged tyre or a wheel bearing. These are checked first because they are the simplest fix.
Quoted after a road testKnocks over bumps or a floaty ride can be a tired air strut or worn suspension arms. See our Touareg air suspension page.
Air spring AED 2,200 to 4,500 per cornerGuide prices at an independent Volkswagen specialist, including parts and labour for typical applications. Your written quote lists the exact parts, labour and VAT for your car.
| Job | Typical price | What changes the price |
|---|---|---|
| Servicing | ||
| Oil and filter service | AED 450 to 900 | Engine size and the oil approval it needs |
| Automatic gearbox fluid service | AED 1,200 to 2,200 | 6 or 8 speed, fluid and filter type |
| Brakes and suspension | ||
| Brake pads, per axle | AED 600 to 1,100 | Genuine or OEM, sensor included |
| Front discs and pads | AED 1,600 to 2,800 | Disc size and brake package |
| Air spring, per corner | AED 2,200 to 4,500 | Generation, aftermarket or genuine |
| Air suspension compressor | AED 2,000 to 4,000 | Relay and lines checked at the same time |
| Engine and cooling | ||
| Timing chain set | AED 5,500 to 12,000 | VR6, V6 or V8, gearbox or engine removal |
| Water pump and thermostat | AED 1,500 to 3,200 | Engine and housing material |
| Valve cover gaskets | AED 750 to 2,200 | One or both banks |
| Intake valve carbon clean, 3.6 FSI | AED 1,800 to 3,000 | Walnut blasting with new intake gaskets |
| Drivetrain, electrics and glass | ||
| Propshaft centre bearing | AED 1,200 to 2,500 | Bearing only or a complete shaft |
| Transfer case, reconditioned | AED 5,000 to 9,000 | Generation and actuator condition |
| Battery, fitted and coded | AED 800 to 1,500 | AGM size and coding |
| Alternator, fitted | AED 1,800 to 3,800 | New or remanufactured unit |
| Serpentine belt and tensioner | AED 700 to 1,500 | Engine and pulley condition |
| Drive shaft or CV joint, per side | AED 1,400 to 3,200 | Boot only, joint or complete shaft |
| Exhaust flex pipe | AED 600 to 1,500 | Welded section or complete pipe |
| Windshield | AED 1,800 to 3,800 | Camera, heated glass and head up display |
Guide prices, not fixed tariffs. Send the year, engine and mileage and we reply with a written price. Extra work is only done after you approve it.
WhatsApp for a quoteUse the maintenance plan for the actual engine, gearbox, original market and equipment. Review age, mileage, service history and duty cycle before choosing oil, plug, belt, drivetrain-fluid or other work; a model-wide mileage chart is not a substitute.
Oil and filter to the approval your engine needs, a fault scan, brake and tyre check, battery test and a look at the air springs.
Air and cabin filters, brake fluid by time, an AC check before summer and a propshaft centre bearing check.
Spark plugs on petrol engines, automatic gearbox fluid, transfer case and differential oils, and the belt and tensioner.
Timing chain readings, water pump and thermostat, carbon check on the 3.6 FSI, suspension bushes and the air suspension compressor.
Compare the proposed parts, tests, fitted total and completion plan before approving the repair.
Engine code, timing drive and original market
Evidence supporting the proposed repair
Condition, specification and supplier availability
Parts, labour, VAT treatment and agreed extras
Removal, coding and specialist support required
Relevant post-repair checks and estimated completion
Confirm the agreed post-repair checks and request the replaced parts before collection. A road test is performed only when safe and relevant.
We work only on Volkswagens, so Touareg engines, 4MOTION systems, air suspension and coding are everyday work.
VW diagnostic software, live data and a physical test confirm the fault before anything is ordered.
Parts, labour and VAT listed line by line, with genuine and OEM supplier parts both priced so you can choose.
Fitted to VW torque and coding procedures, road tested, and the old parts shown to you at handover.
Straight answers before you book your Touareg in.
Ask your own questionAn oil and filter service is typically AED 450 to 900, depending on the engine and the oil approval it needs. A fuller service with filters, fluids and checks costs more, and the written quote lists every part, labour and VAT before we start.
Both occur. Relevant VR6/V6 and later FSI engines use chains, while early 4.2-litre five-valve V8 applications use a toothed camshaft belt. Imported diesels and other powertrains need separate identification. Engine code determines the drive, maintenance requirements, kit and access. Selected chain work is guided at AED 5,500–12,000; this is not a belt-work quotation.
On cars with air suspension it is usually a leaking air spring, line or valve block. Fixing it early protects the compressor. An air spring is typically AED 2,200 to 4,500 per corner, and we leak test before replacing anything.
The most common cause is a worn propshaft centre bearing, typically AED 1,200 to 2,500. Mismatched tyres can also strain the transfer case, so we check tyre sizes and wear at the same time.
Volkswagen announced that combustion-engine Touareg production ends in 2026 with a Final Edition. Existing cars still need vehicle-specific maintenance and repair. Genuine/OEM availability, compatibility and lead time must be checked for the actual part; the announcement does not guarantee every component is stocked.
It depends on the engine and year. Older petrol engines usually need a VW 502 00 or 504 00 approved oil, and newer engines may need a 508 00 low viscosity oil. We check the approval for your engine code before the service.
Often yes. Many faults come from a weak 12 volt battery or software, so we test the battery and fault memory first, then update or code the affected module. Diagnosis and coding start from about AED 400.
Services, brakes and batteries are usually same day. An air spring, water pump or propshaft bearing normally takes one to two days. A timing chain or transfer case depends on parts and findings, and we give you a timeline with the quote.
Send the year, engine, mileage and what the car is doing. We reply with a clear plan and price before you drive over.
