In this guide
A VW diagnostic scan reads the fault codes and live data stored in the control units of the car, but it does not repair anything or prove which part has failed. A generic OBD reader mainly sees engine and emissions faults. Volkswagen specific diagnostics can read every control unit, such as ABS, airbag, gearbox and comfort systems, and run guided tests. The code points to a system, and tests on that system confirm the cause.
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4. Reviewed by the technical team, updated October 2026.
Key takeaways
- A scan reads stored faults and live data. It is the start of a diagnosis, not the end.
- Generic OBD readers focus on engine and emissions faults. Many VW faults sit in other control units.
- A fault code points to a circuit or system, not always to the part that failed.
- Clearing a code without fixing the cause only hides the fault until it returns.
- Mechanical tests, such as pressure, compression or leak tests, are often needed alongside the scan.
- Coding and adaptation after repairs need Volkswagen capable equipment.
What does a VW diagnostic scan actually do?
Modern Volkswagens have many control units, each looking after one area of the car. A diagnostic scan connects to them and reads what they have recorded.
Fault codes
Stored and active faults, each pointing to a circuit, sensor or system the unit has flagged.
Freeze frame
A snapshot of conditions, such as speed and temperature, saved when the fault was stored.
Live data
Readings in real time, such as sensor values, pressures and temperatures, while the engine runs.
Guided tests
Tests that switch parts on and off, such as a fan, pump or valve, to check they respond.
What is the difference between a generic OBD scan and a VW specific scan?
Not all scan tools see the same information. The difference matters when a warning is not an engine fault.
| What it can do | Generic OBD reader | VW specific diagnostics |
|---|---|---|
| Engine and emissions faults | Yes, standard codes | Yes, with VW detail |
| ABS, airbag and gearbox units | Usually limited or none | Yes, unit by unit |
| Comfort and body electronics | Usually none | Yes |
| Guided component tests | Very limited | Yes, where supported |
| Coding and adaptation | No | Yes, where permitted |
The OBD II standard, required on light vehicles sold in the US from 1996, continuously monitors engine performance and emissions control systems and stores a code when it detects a fault. That is why a basic reader is useful for an engine light but often shows nothing for an airbag, ABS or comfort warning.
What do ODIS and VCDS scan reports mean?
Owners sometimes arrive with a scan report from a dealer or another workshop. These are the names you are most likely to see on them.
ODIS
The Volkswagen Group dealer diagnostic system. Some protected functions need manufacturer online access.
VCDS
A widely used independent tool for Volkswagen Group cars, often seen on reports from specialists and owners.
Generic OBD
A low cost reader that shows standard engine codes, useful but limited for other systems.
If you already have a scan report, send the complete report rather than a photo of one line. The full list of control units and faults helps us see the whole picture before the visit.
Does a fault code tell you which part to replace?
A fault code is a starting point. It tells you what the control unit noticed, not always why. Many codes can be caused by wiring, connectors, voltage or another part in the same system. A misfire code is a good example, explained in our VW engine misfire guide.
- A sensor code can mean the sensor, its wiring or the thing it measures is at fault.
- A misfire code points to a cylinder, but the coil, plug, injector or engine decides the repair.
- Several codes at once often point to low battery voltage or a shared connection.
- A stored code may be old, while an active code is present now.
- No code does not always mean no fault, as some faults are mechanical.
For engine light and EPC warnings, our EPC and engine warning diagnosis page explains how codes are checked against live data.
When does a VW need tests beyond the scan?
Some faults do not show clearly in the control units. These tests confirm what the scan suggests.

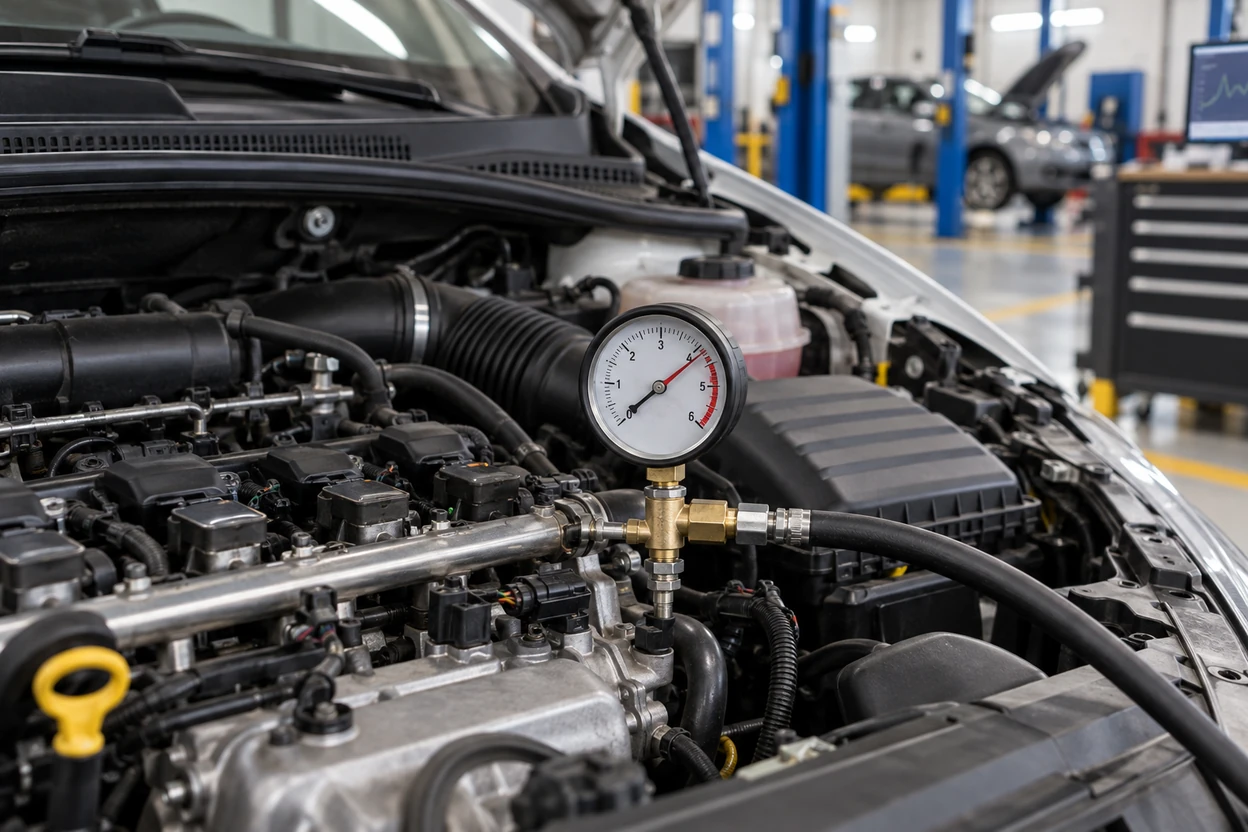

- Pressure tests
- Cooling system, fuel and boost pressure tests find leaks and supply faults.
- Compression and leak down
- Show whether a cylinder seals properly when a misfire stays after ignition checks.
- Electrical tests
- Supply, earth and signal checks on the wiring a code points to.
- Smoke and dye tests
- Find air leaks, vacuum leaks and slow fluid leaks that a scan cannot see.
Got a warning light or a scan report? Send us a photo of the warning or the full report, and we will tell you what to check next.
How does a VW diagnostic visit work?
A diagnostic visit follows a fixed order, so the scan and the tests support each other.
- 1Listen and record
Your description, when it happens and any recent work.
- 2Scan all units
Read faults and freeze frames across the control units.
- 3Test the system
Live data, guided tests and mechanical checks.
- 4Explain and quote
The confirmed cause and a written quote before repair.
Should you clear fault codes yourself?
Clearing a code turns off the warning, but it does not fix the cause. It also removes information the workshop needs.
Read and record before clearing
Note or save every code and freeze frame before anything is cleared.
Freeze frames are lost
Clearing deletes the conditions recorded when the fault happened.
The fault returns
If the cause is still there, the code and warning come back.
Monitors reset
Clearing resets the emissions readiness checks, which take driving to complete again.
Disconnecting the battery can lose settings, upset adaptation values and create new faults in other control units. It does not repair the original problem.
What are coding and adaptation?
After some repairs, a part has to be told about the car it is fitted to, or the car has to learn the new part.
-
Battery registration
A new battery is registered so charging matches it.
-
Injector coding
Injector values are entered so fuel is metered correctly.
-
Gearbox adaptation
Clutch and shift values are relearned after gearbox work.
-
Key matching
New keys are matched to the immobiliser where permitted.
-
Sensor basic settings
Steering angle and other sensors are set after related work.
Some protected functions, such as certain immobiliser and control unit work, need manufacturer online access and ownership documents. We confirm what is possible for your car before accepting the job.
How much does a VW diagnostic check cost in Dubai?
The first step is an agreed assessment. These guide ranges come from our own service pages and are alternatives, not one bill.
| Work | Guide range | When it applies |
|---|---|---|
| Initial diagnostic assessment | AED 150 to 500 | Reading faults and first checks for a warning or running fault |
| Vehicle inspection | AED 200 to 1,500 | Multi point inspection with a written condition report |
| Pre purchase inspection | AED 300 to 2,000 | Checks before buying a used Volkswagen |
Indicative ranges. The scope and fee are agreed before the checks start, and repairs are quoted separately after the findings.
Find the cause, not just the code
Our Al Quoz 4 workshop uses Volkswagen specific diagnostic software, reads all relevant control units and tests the system involved, then explains the cause with a written quote before repair.
How urgent is a diagnostic check?
Read the scale from left to right, from situations you can book in for to signs that mean stop now.
Book a pre purchase scan before you commit.
Book a scan before stored faults are lost.
Drive carefully and book a check soon.
Reduce load and get it checked straight away.
Stop safely and arrange recovery if needed.
Diagnostic mistakes we see
The code points to a system, not always a part.
The evidence is lost and the fault returns.
Many VW faults sit outside the engine unit.
Low voltage can cause many unrelated codes.
Leaks and wear do not always show as codes.
The full report shows how faults connect.
Quick answers about VW diagnostics
What does a VW diagnostic test show? Stored faults, freeze frames and live data from the control units.
Can a cheap OBD reader diagnose my VW? It can read engine codes, but often not ABS, airbag or comfort faults.
Does a code mean the part has failed? Not always. Tests confirm the cause.
Will clearing codes fix the light? Only until the fault returns.
How long does a diagnostic check take? It depends on the fault, and the scope is agreed first.
Key diagnostic terms explained
These terms appear on scan reports and diagnostic quotes.
- Control unit
- A small computer that runs one system, such as the engine, ABS or airbag.
- Fault code
- A code stored by a control unit when it detects a fault in a circuit or system.
- OBD II
- The standard diagnostic system that monitors engine and emissions control faults.
- Freeze frame
- A record of conditions saved at the moment a fault was stored.
- Live data
- Real time readings from sensors and control units while the car runs.
- Adaptation
- A learning routine that sets values for a new part or after a repair.
What we check first on every diagnostic visit
Every diagnostic visit in our Al Quoz 4 workshop starts with the same checks, so the scan results can be trusted.
Voltage, scan, then test
Good data starts with good voltage.
-
We listen to your description and note when the fault happens, so the right conditions can be recreated.
-
We check battery voltage first, because low voltage can store faults across many units.
-
We scan all relevant control units with Volkswagen specific diagnostic software and save the results.
-
We test the system the faults point to, using live data, guided tests and mechanical checks.
-
We explain the confirmed cause and quote the repair, then clear the codes and recheck after the work.
What to send before your visit
A few details help us plan the right checks.
- Model, year and engine
- A photo of the warning
- Any full scan report you have
- When the fault happens
- Recent repairs or battery work
- Whether it is steady or flashing
- Any change in how it drives
- Whether codes were cleared
Send them on WhatsApp to 056 464 6081 and a technician will reply.
Questions about VW diagnostic tests
What does a VW diagnostic test check?
It reads stored and active fault codes, freeze frame data and live readings from the control units of the car, and can run guided tests on parts such as fans, pumps and valves. A full diagnosis then tests the system the codes point to, using electrical and mechanical checks where needed, before any repair is recommended.
Can a cheap OBD reader diagnose my Volkswagen?
A generic OBD reader can read standard engine and emissions codes, which is useful for an engine light. It usually cannot read ABS, airbag, gearbox or comfort control units in detail, run guided tests or carry out coding. Many Volkswagen warnings sit outside the engine unit, so a VW specific scan sees more.
Does a fault code tell me which part to replace?
Not always. A code tells you what the control unit detected, such as a signal out of range, not why it happened. The cause can be the part, its wiring, a connector, low voltage or another part in the same system. Tests on that system confirm the cause before a part is replaced.
What is the difference between ODIS and VCDS?
ODIS is the Volkswagen Group dealer diagnostic system, and some protected functions need manufacturer online access. VCDS is a widely used independent tool for Volkswagen Group cars. Both can produce scan reports. If you have a report from either, send the complete report so we can see every control unit and fault.
Should I clear the fault codes myself?
It is better not to before a visit. Clearing deletes the freeze frame data the workshop uses, resets the emissions readiness checks and does not fix the cause, so the warning returns. If you have cleared codes, tell us, as it changes how the fault is traced.
Why do I have many fault codes at once?
Several codes across different control units often point to a shared cause, most commonly low battery voltage, a charging fault or a shared connection. Communication faults between units can also appear together. Testing the battery and charging system is one of the first checks when many codes appear at the same time.
Can a scan find mechanical faults?
Only indirectly. A scan can show symptoms, such as a misfire or a pressure that is too low, but it cannot see a worn bearing, a leak or low compression directly. Mechanical tests such as pressure, compression, smoke and dye tests confirm what the scan data suggests.
Do I need coding after a repair?
Some repairs do. New batteries are registered, injectors are coded, gearboxes are adapted, keys are matched and some sensors need basic settings. Certain protected functions need manufacturer online access and ownership documents. We confirm what your repair needs and whether it is possible before the work.
How much does a VW diagnostic check cost in Dubai?
Our guide for an initial diagnostic assessment is AED 150 to 500, with the scope and fee agreed first. A multi point vehicle inspection is AED 200 to 1,500, and a pre purchase inspection is AED 300 to 2,000. Repairs are quoted separately once the cause has been confirmed.
Book a diagnostic check in Al Quoz 4
Volkswagen Repair Dubai is an independent VW workshop in Al Quoz 4, open Monday to Saturday, 9am to 7pm. Send your model and a photo of the warning or your scan report, and we will advise the next step.
See inspection options on our Volkswagen inspection service page, and dashboard warnings in our warning lights guide.
How this guide was written
Written by the Volkswagen Repair Dubai workshop team in Al Quoz 4 and reviewed by our technical team in October 2026. It is based on the diagnostic steps we follow on Volkswagens in Dubai and on the OBD reference listed below.
Diagnostic capability differs by model, year and control unit, and some protected functions need manufacturer access. Prices are the indicative guide ranges published on our own service pages, not fixed quotes. For charging and battery faults, see our VW battery problems guide.
Technical references
- Nevada DMV, on board diagnostics testing, explaining that OBD II continuously monitors engine performance and emissions control systems on 1996 and newer light vehicles in the US.
